MAIN GATEWAY
It is used for accumulation and storage of system data. The device determines the logical scheme of the system and allows authorized access to the system via the Internet. It also converts Ethernet into CAN bus and vice versa. DE-MG has a built-in IR receiver.The DE-MG can be controlled via cloud with a securely encrypted signal. The system history from all other devices and sensors is stored on the DE-MG for one year. Its plug and play feature means that it automatically detects and configures new Larnitech devices that are added to the system. A large and constantly updated database of ready-made scripts ensures that your home does everything your heart may desire. Get things going by telling your home what to do with the help of Siri, Alexa or Google Home. Get push notifications on your phone whenever the system has things to tell you and enjoy the ultimate control at your fingertips

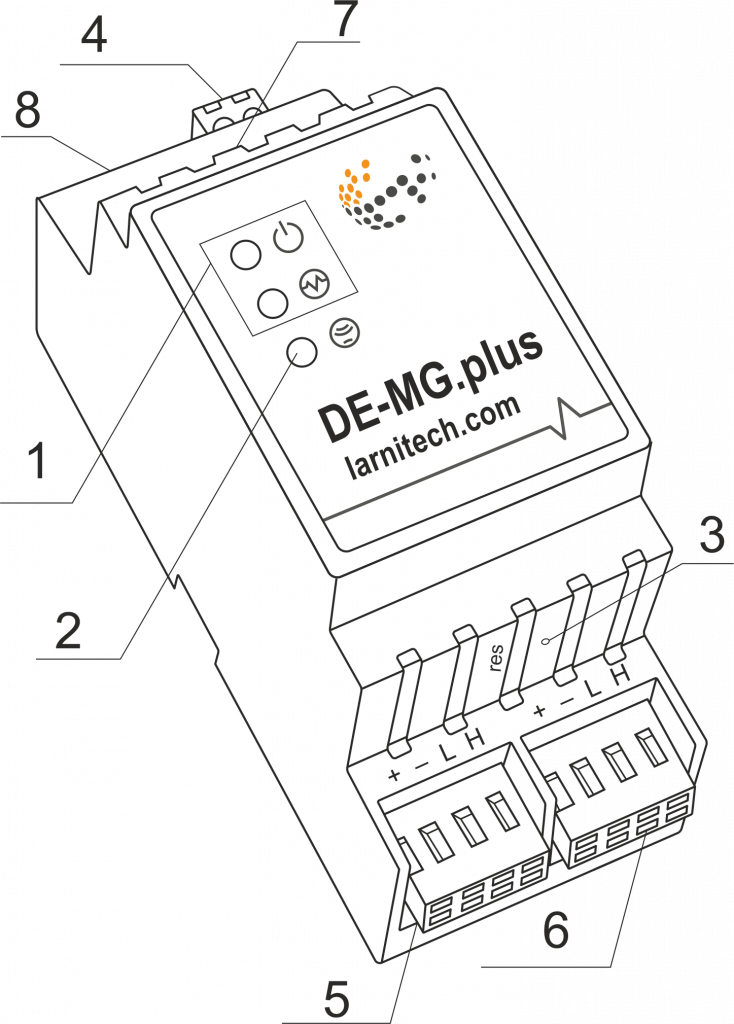

Module view
- Indicators
- IR Reсiever
- Recovery button
- Power supply
- CAN1
- CAN2
- Ethernet
- EiB
Сonnection example
Module parameters
| Parameter name | Value |
|---|---|
| Type of connection | CAN, Ethernet |
| Input/output interfaces | Ethernet, 2xCAN, EIB, Bluetooth |
| Data speed | 10/100Mb/s |
| Max CAN deviсes | 100(50 per CAN) |
| CAN bus topology | BUS |
| Number of CAN ports | 2 |
| Power supply |
11.5 … 27.5 V DC 24V, 2.5A Recommended |
| Max own current (24V) | 140mA |
| Max CAN bus length | 800 m* (twisted pair 5 cat) |
| Max current per CAN bus | 700mA |
| IR Receiver angle | 30° |
| Case material | ABS |
| Protection | IP40 |
| Equipment installation type | DIN-rail (EN 60715) |
| Temperature range | -10 … +50°C |
| Size | 2U, 36x102x58 mm |
| Weight | 145 g |
* – installing additional power supply units is required for long lines; the maximum length of the line may be reduced by various interference factors

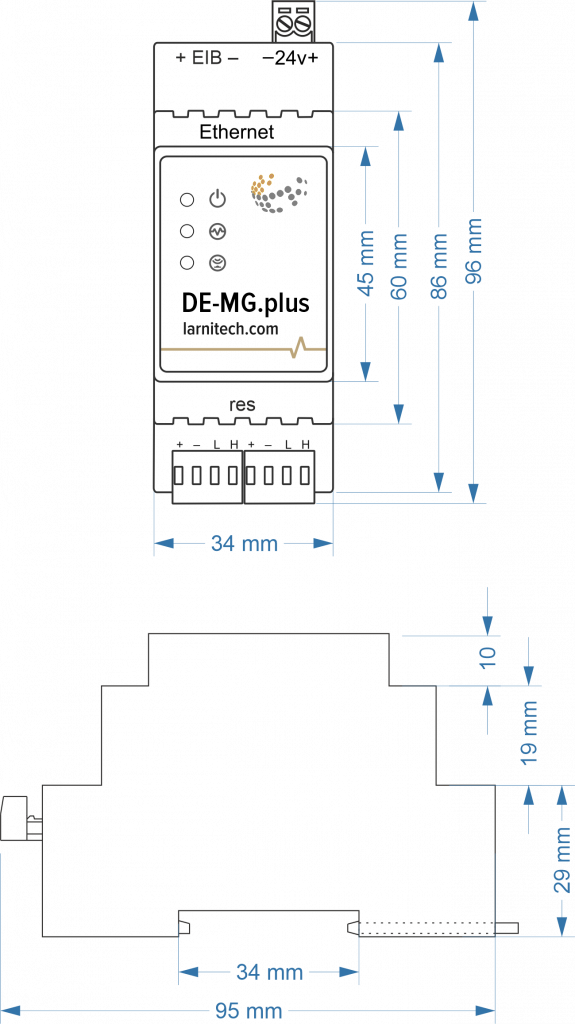

Module dimension
Indication of module operation
| Indicator | Status | Description |
|---|---|---|
| Power | Power | |
| Power not available | ||
| Activity | Data communication | |
| Data communication not available | ||
| Error | No errors | |
| Overheating |
|
Max CAN devices
|
100(50 per CAN) |
|
Max CAN bus length
|
800 m (twisted pair 5 cat) |
|
Max current per CAN bus
|
700mA |
|
CAN port qty
|
2 |
|
Type of connection
|
CAN, Ethernet |
|
Input/output interfaces
|
Ethernet, 2xCAN, EIB, Bluetooth |
|
Supply voltage
|
11.5...27.5 V DC |
|
Size (WxHxD)
|
2U, 36x102x58 mm |
